Abrasive Cutting Grinding Wheel Forming Machine

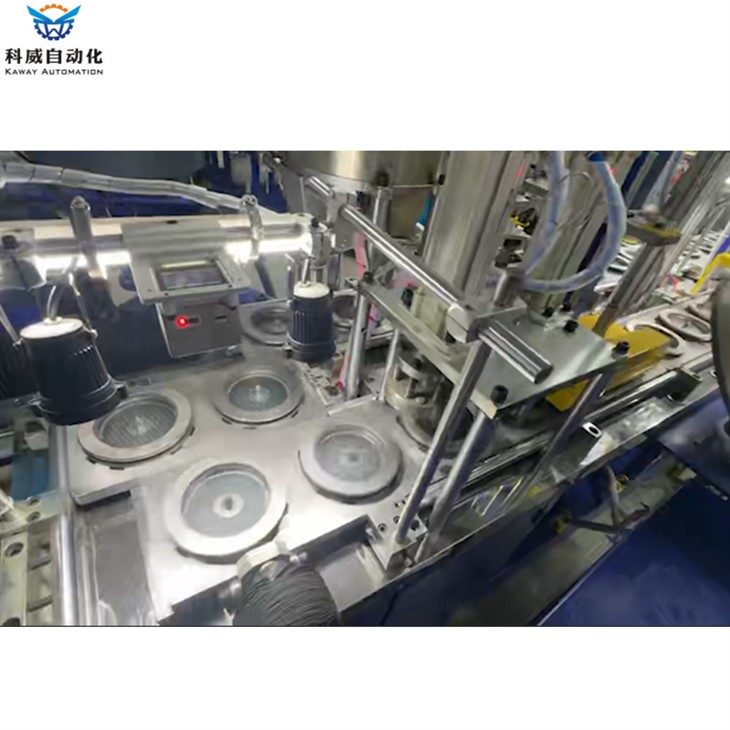

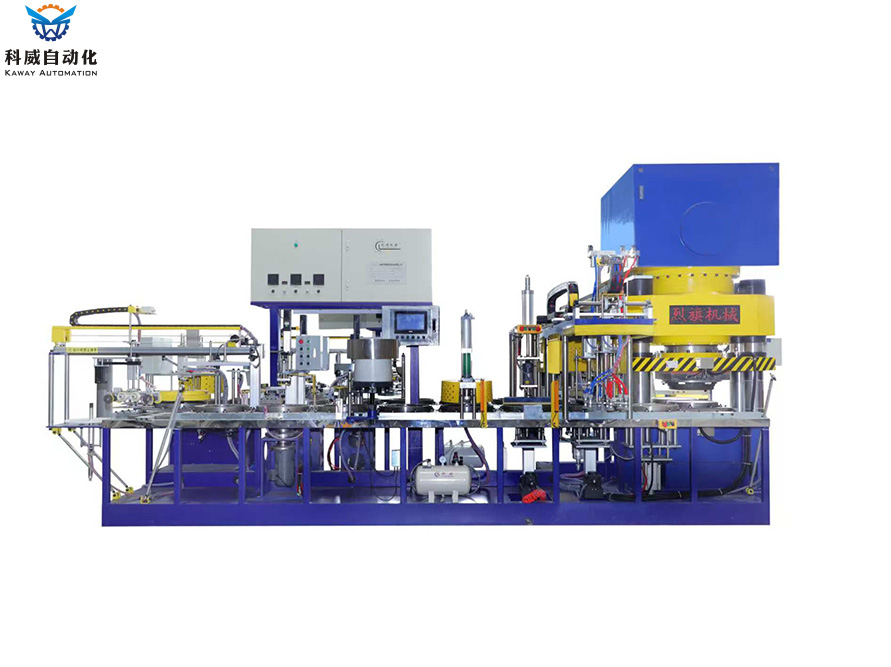

The Abrasive Cutting Grinding Wheel Forming Machine are propelled by electric cylinder, which can make the mold more stable and high speed. We also adopt electric cylinder squeegee, which has faster speed and stability compared with traditional CAM, tie bar and other micro-lifting methods, and can be set up according to different micro-lifting effects of customers.

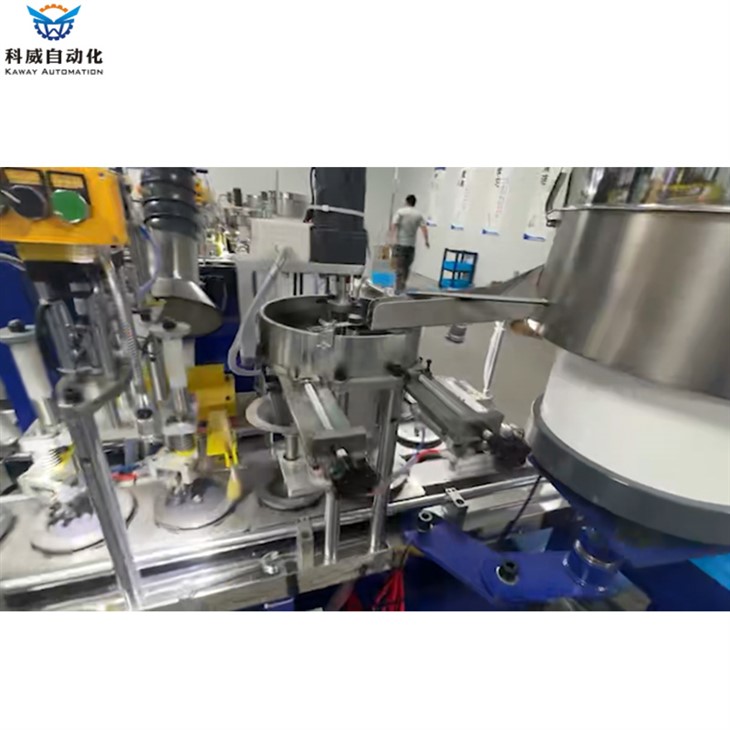

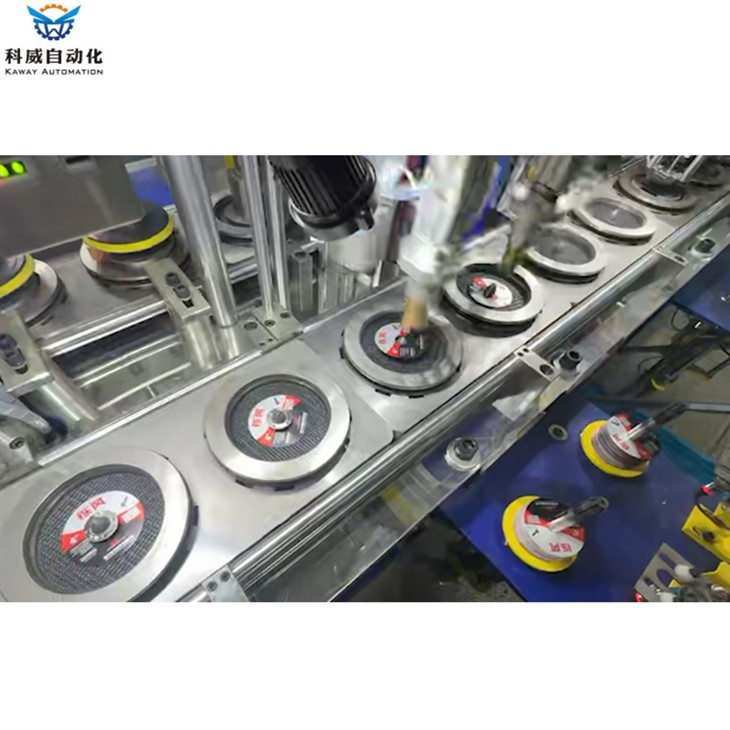

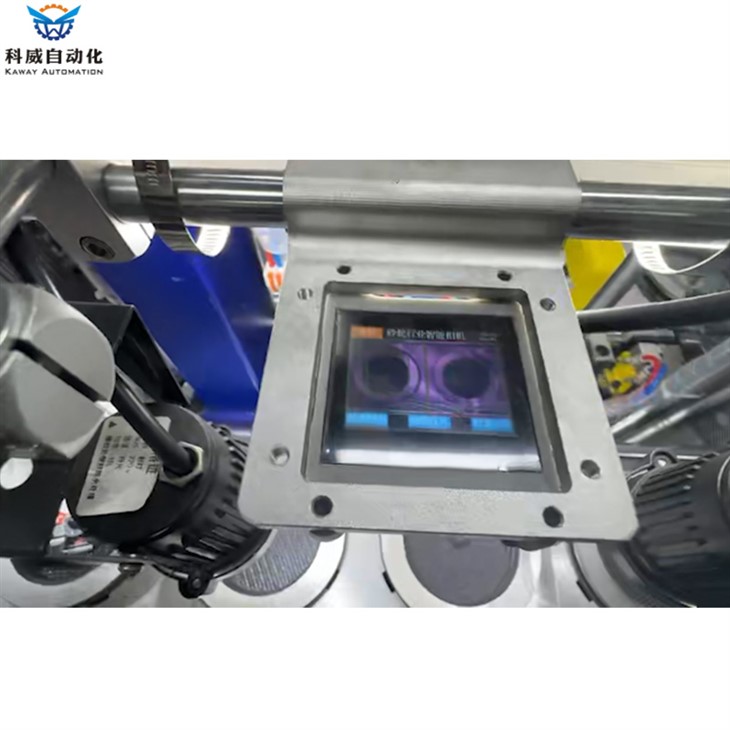

The equipment is equipped with automatic suction cups, automatic mesh release, automatic release of trademark hole rings, and various intelligent detection means, which saves a lot of manpower and improves production, and the output can reach about 1300 pieces per hour.
Technical Specifications
| Cutting disc size | 125mm T41 |
| Cutting disc thickness | 1-3mm |
| Abrasive grain layer | 1 |
| Machine type | full automatic/linear type |
| Working station quantity/molds quantity | 26 Double mold cavity |
| Operator | 1 |
| weight | 9T |
| Main Machine size (Estimated) | 5832*1800*2550mm |
| Pressing force | 200T |
| Production of 2 discs (work speed) | 7s |
| Power | 25KW |
| Compressed Air volume | 1.2m3/min(pressure: 0.8mpa) |
| Hydraulic cooling water flow | 0.8m3/min |
| Main press | hydraulic |
| Unloading mode | hydraulic |
| Waxing method | Automatic (initial applying by hand) |
| Pressing plate moving | √ |
| Support plate reset | √ |
| Abrasive grain feeding (by weight) | Automatic ×2 (one independent grain feeding system for each disc; to make 2 discs at one time, two set of feeding system ) (Usually by volume) |
| Weight feeding accuracy | 20-100g, +/- 1g; 100-500g, +/- 2g |
| Net feeding | Automatic×2 Double mold cavity |
| Label feeding | Automatic ×1 Double mold cavity |
| Metal ring feeding | Automatic ×1 Double mold cavity |
| Unloading disc | Automatic ×1 Double mold cavity |
| overturn | × |
| Color | Gray |
| Safety | safety net for needed parts |
| Hydraulic system | Whole system including pump, filter and hose |
| PU mold material | Bearing steel;the material of the mold's insert is polyurethane. |
| Molds size (diameter)included in the machine price (T41) | 125mm only |
Brand Quality Service
Major component brands
Press: Foshan, Guangdong (Lieqi)
Servo oil pump: ordinary oil pump
PLC: Xinjie/Mitsubishi/Siemens
Touch screen: Xinjie/Mitsubishi/Siemens
Contactor: Xinjie/Mitsubishi/Siemens
Servo motor: Xinjie/Mitsubishi/Siemens
Relay: Omron
Stepper motor: MiG
Rotary motor: Obon
Cylinder/Valve: Airtac/SMC/CKD
Electric cylinder: Newland/Hongsheng
