Zhengzhou HG Abrasive Tech. Co., Ltd. is one of the leading manufacturers and suppliers of component epoxy resin flap disc outer round glue in China. As we have professional production team and strong manufacturing capabilities, we warmly welcome you to buy the best quality component epoxy resin flap disc outer round glue from our factory. For price consultation, contact us.

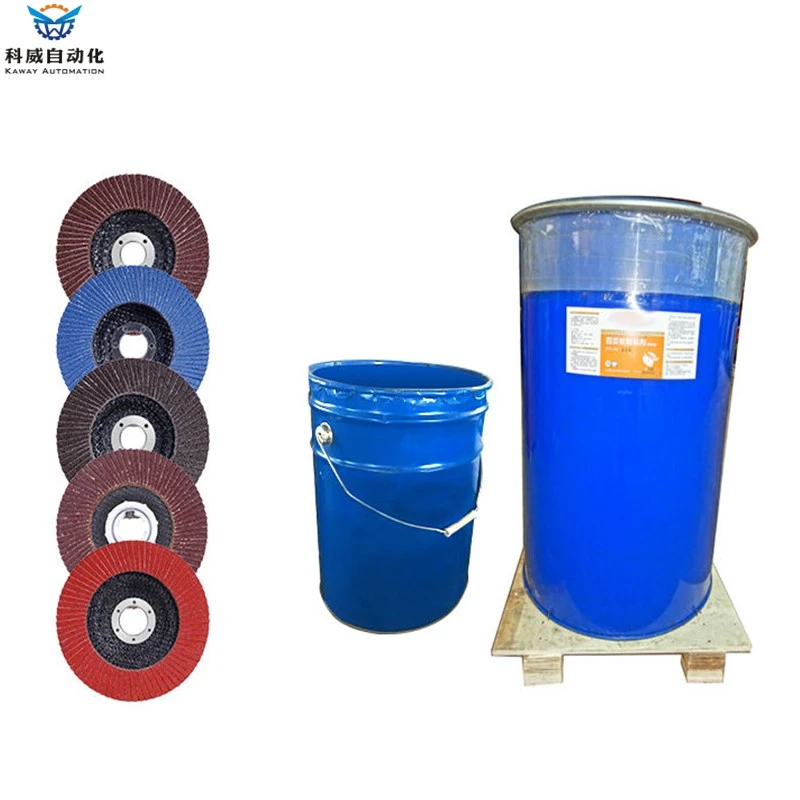

Component Epoxy Resin Flap Disc Outer Round Glue
Our Component Epoxy Resin Flap Disc Outer Round Glue is a professionally suitable glue developed for a variety of different abrasive tools. It is suitable for all kinds of rubber abrasive tools such as page wheels, abrasive cloth wire wheels, shank impeller, elastic grinding disc, flying wing wheels, diamond soft grinding sheet, abrasive belt joint, and so on. In addition, it has the characteristics of high bonding strength, good toughness, fast curing at high temperatures, good permeability, and non-sagging. And our products are professionally tested and formulated to minimize health effects on operators.
Our Flap Disc Glue is the raw material necessary for the production of louvers, and it accounts for about 30% of the importance. It is a one-component glue. Our flipping machine has two sizes of plastic buckets, 300KG/drum, and 30KG/drum. If it is a semi-automatic flipping machine or a fully automatic flipping machine, we recommend that you use 300KG/drum. Because it is convenient for you. If it is a flexible flipping machine, we recommend that you use one of each of the two sizes.
Component Epoxy Resin Flap Disc Outer Round Glue
One-component epoxy resin flap disc outer round glue (adhesive)
1. This product is the outer round glue (adhesive) of the flap disc, and the main body is epoxy resin and curing system.
2. This product is used at room temperature or slightly heated. The flow and dissipation on the back of the flap disc is moderate, not exceeding half the width of the blade so the blade has a better utilization rate and the product quality is guaranteed.
3. There are a few additives in this product. After curing, there is no shade on the back of the leaves, less residue, smooth and beautiful, and the bonding strength is strong and the leaves will not scatter.
4. When the flap disc is used in the part containing glue, the glue, and the blade can be properly consumed synchronously, which makes the operation more comfortable and improves the utilization rate of the louver.
Two-component epoxy resin
1. Component A is an epoxy resin system, and component B is the curing agent system
2. Proportion: Mainly A:B=3:1, also 2:1 or 1.5:1
3. After the components A and B are weighed, stir them evenly, then add the weighed calcium powder or other powders, and stir again until they are even.
4. Available operation time is 60-90 minutes
5. Curing conditions: heat up to 85°C and hold for 180 minutes; heat up to 90°C and hold for 150 minutes; or heat up to 100°C and hold for 60 minutes.
Flexible flap disc one-component inner circle (filling core) glue
1. This product is a special inner circle (filling core) glue for Flexible flap disc molding machine. It is a single-component curing system of epoxy resin. It adopts the current advanced chemical technology-chemical molecular anchoring technology. , is the central colloid to maintain a perfect body shape.
2. This product is used at room temperature or slightly heated, and has good fluidity. It can form a smooth mirror surface in the center of the flexible flap disc, which is beautiful and regular, and greatly improves the appearance quality of the impeller product.
3. The strength of this product is extremely high after curing, which can increase the rotational strength of the flexible flap disc from 16000-18000 rpm to more than 21000-23000 rpm.
4. Curing conditions: heat up to 115°C, keep warm for 4 hours
5. The shelf life of this product: 180 days; 25°C, 90 days; 60°C, 5 days
6. The color of this product: white, blue or customized color.
7. Packing: 300kg
EQUIPMENT TECHNICAL PARAMETERS AND CONFIGURATION
| Proportion(g/cm³) | 1.45-1.5 |
| Viscosity(25℃,mpa.s) | 26000---32000 |
| Shelf life | 5 ℃---180 days;25 ℃---90 days; 60℃---5 days. |
| Solidify conditions | 115℃ Insulation 4H. |
| Hardness(shored) | ＞88 |
| Shear strength(25℃, steel, mpa) | ＞25 |
| Flap disc rotation strength(25℃, 90mm backing, 17mm*22mm,60#) | ＞23000R/Min. |
| Size | 300KG/barrel; 30KG/barrel |
| Color | Blue, White, Blac, Custom color |
| Product Name | Flap Disc Glue |
