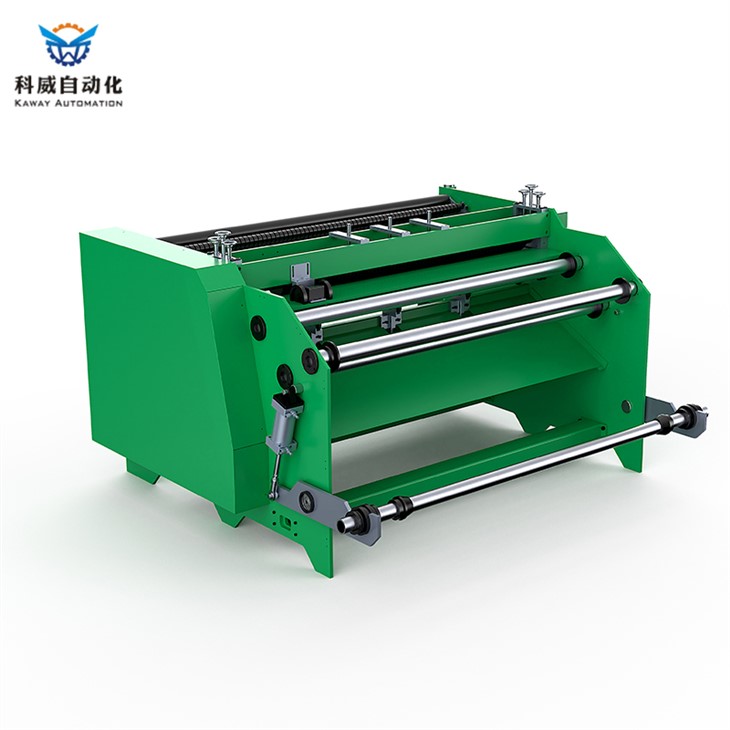

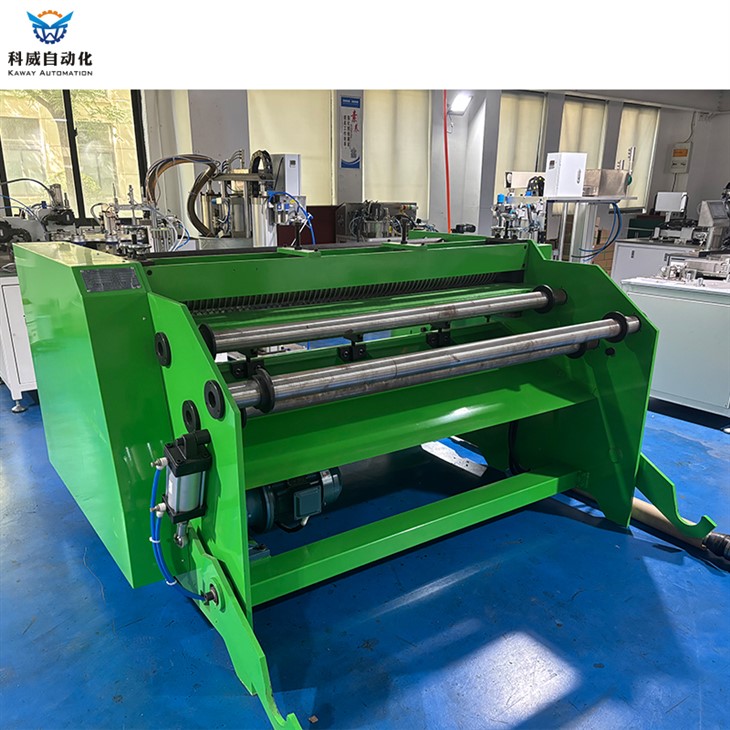

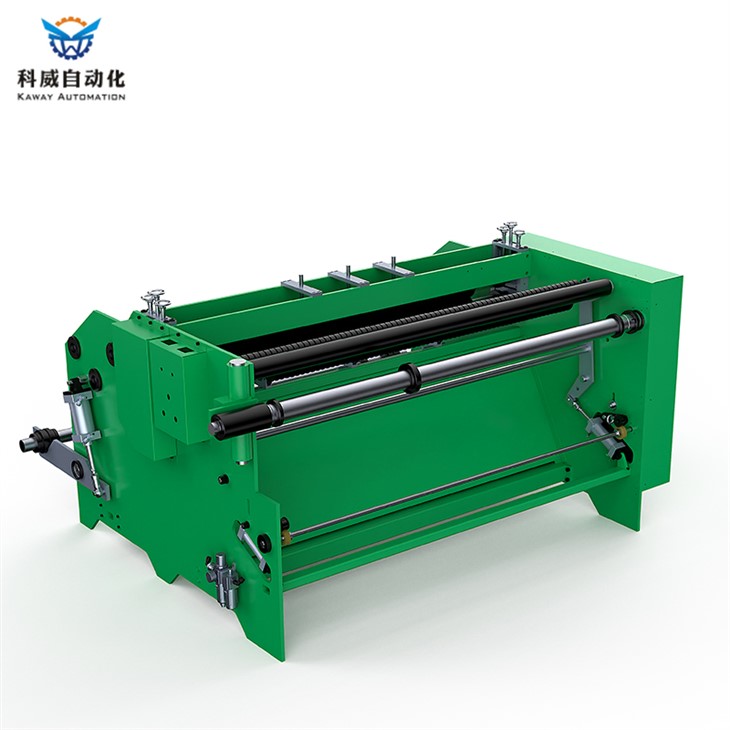

Abrasive Cloth Belt Slitting Machine is a special equipment for belt cutting and slitting. The machine adopts a high-precision stepping system to control the cutting width, and cooperates with precision ball screws and slide rails to achieve high-precision cutting. Thanks to the scissor cutting technology, the machine cuts the belt evenly and without burrs.
Abrasive Cloth Belt Slitting Machine uses a variable frequency motor for input speed regulation, which can switch between high and low speeds or forward and reverse. The loading and unloading part of the machine is automatically controlled by a pneumatic system, which not only makes the processing process more automated, but also makes it easier for operators to operate.
Core Functions
Unwinding: Holds and feeds large abrasive cloth rolls (max width 1650mm, diameter 500–800mm).
Precision Slitting: Uses TCT tungsten carbide blades to cut widths as narrow as 10–50mm with ±0.5mm accuracy.
Rewinding: Winds slit strips into finished narrow rolls (grit side in/out configurable).
Tension Control: Magnetic powder clutch + pneumatic brake for constant tension (25–560N·m adjustable).
Edge Guiding: Photoelectric sensor auto-corrects material drift.
Safety & Waste: Vacuum dust collection + safety photoelectric guards.
Brand Quality Service
|
Technical Specifications (Custom configurations available upon request.) |
||
|
Name |
Abrasive Cloth Jumbo Roll Slitting Machine for Flap Disc | |
| Size(mm) | 2200*2200*1200 | |
| Voltage | 380V 50HZ | |
| Power | 3.5KW | |
| Weight | 1200KG | |
| Slitting speed |
|
|
| For abrasive cloth width | 1650MM | |
| Max diameter | 60CM | |
| Length | 50M-120M | |
| Width | 14mm-38mm | |

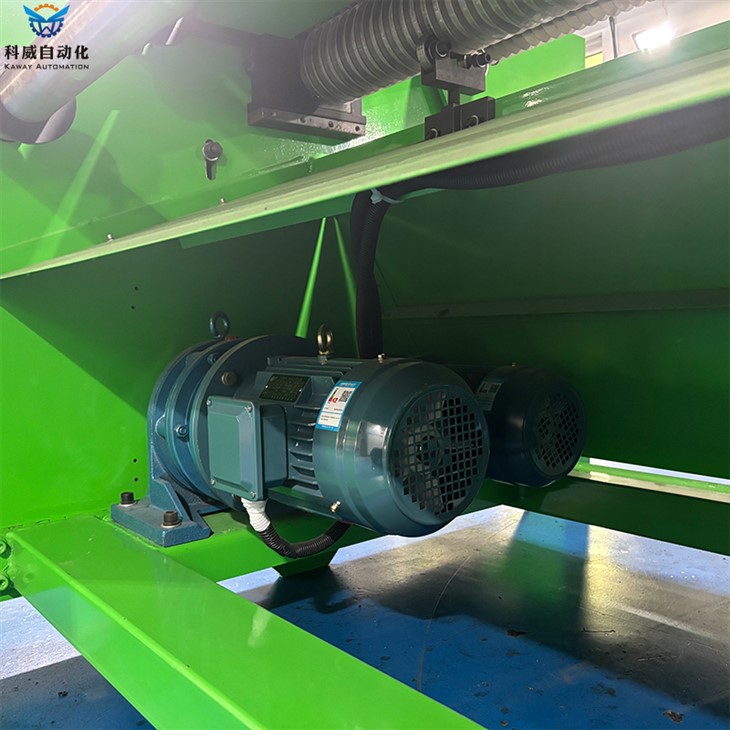

| Control System | Inverter + brand reducer + inverter motor | |

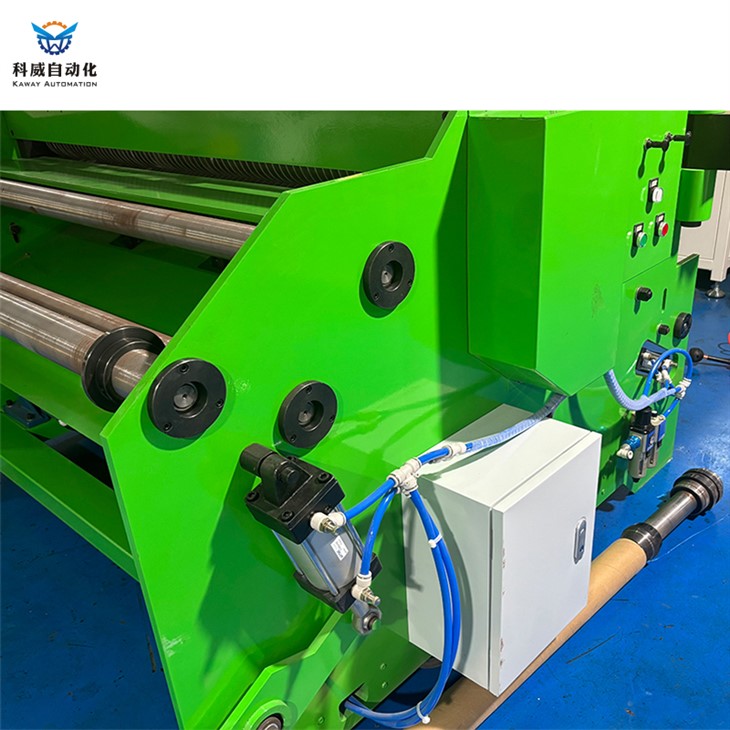

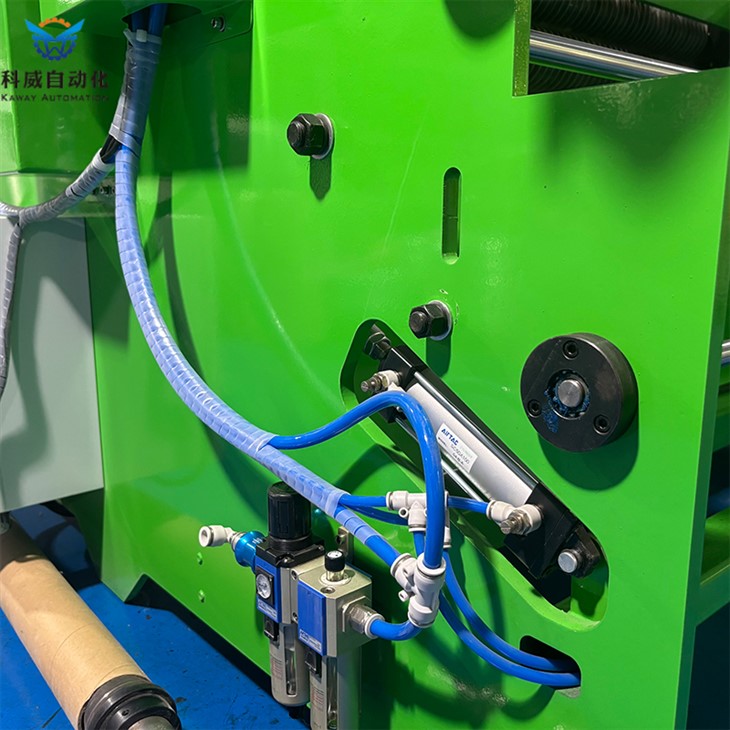

| Cylinder | Air TAC | |
Main Components
Unwind Unit:
Air-expanding shaft + magnetic brake for tension control.

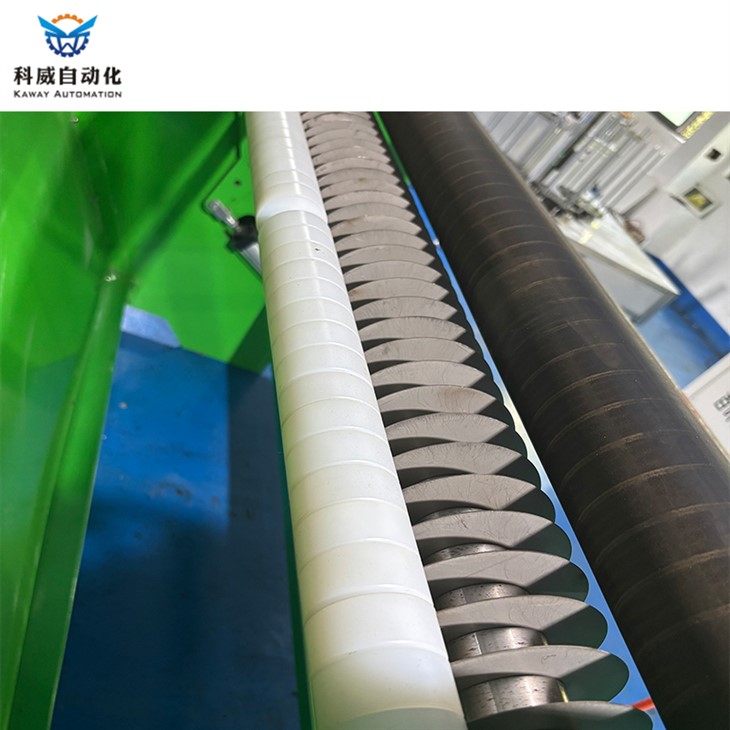

Slitting Station:
Pneumatic blade holders with linear guide adjustment.
Rewind Unit:
Dual air-expanding shafts + magnetic clutch.
Control Panel:
PLC + touchscreen for speed, length, and tension settings.
Correction System:
Photoelectric edge guide (±2mm accuracy).
Safety Cover:
Transparent guard + emergency stop buttons.
about Kaway
Zhengzhou Kaway Automation Technology Co., Ltd. was established in 2012 and is a high-tech enterprise with independent design, research and development production, and sales of automated production equipment for abrasive tools. . The company's business covers three major categories: coated abrasives, bonded abrasives, and production raw materials. It not only provides customers with a complete set of production equipment from production to packaging, but also offers production raw materials and production technology support.
Zhengzhou HG Abrasive Tech, co., Ltd is a wholly-owned subsidiary of Zhengzhou Kaway Automation Technology Co., Ltd
Our
Kaway factory
We support professional personalized customization to adapt to different production needs of global customers:
• Custom cutting dies for different flap wheel diameters, blade shapes and groove sizes
• Adjust feeding stroke, cutting speed and stacking mode for abrasive cloths of different thickness and materials
• Provide personalized configuration upgrades for intelligent automated production lines
• Direct Factory Supply: Professional abrasive machinery manufacturer with independent R&D and production workshop, no middleman markup, cost-effective price
• Mature Industrial Technology: Massively applied in global abrasive manufacturing plants, stable and reliable performance
• Strict Quality Inspection: Every machine undergoes full-function debugging and quality test before delivery to ensure zero defects
• Global After-Sales Support: Provide overseas installation, commissioning and professional operator training services
• Long-Term Warranty: 12-month full machine warranty, 24-month warranty for core components and lifelong technical consultation
All equipment adopts standard export fumigated wooden box packaging, with multi-layer shockproof and fixed protection inside to avoid damage during long-distance transportation. We support sea freight, air freight and various international logistics methods, and provide complete factory test reports, packing lists and customs clearance documents to ensure smooth delivery.
Whether you need standard slicing equipment or customized production solutions for special abrasive products, we can meet your production requirements. Contact us today to obtain free machine operation videos, professional technical solutions and exclusive wholesale quotation. labore et dolore magna aliqua. it enim ad minim veniam.
After Sales Service
12-month warranty:
Core components (servo motor, PLC) are guaranteed for 18 months.
Free installation and debugging:
Professional engineers come on-site for installation, debugging, and training operations.
Lifetime technical support:
24/7 online consultation, response and troubleshooting within 48 hours.
Spare parts supply:
Regular spare parts inventory, fast delivery, and reduced downtime.
